DADISICK Laser Distance Sensor

Laser distance sensors are widely used in many fields due to their characteristics of measuring distance up to 50 meters, high precision, non-contact measurement and fast response. They play an important role in measuring distance and height of buildings, topographic measurement, logistics and warehousing positioning, production line measurement, and engineering monitoring in large-scale construction projects such as bridges, tunnels, and subways.

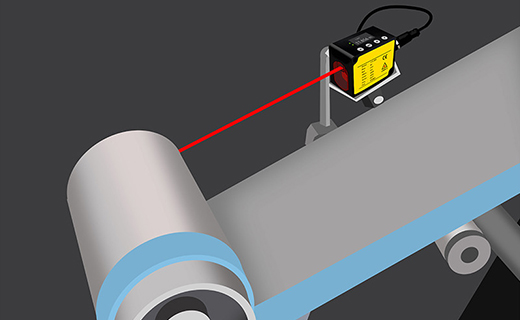

Non-contact roll diameter measurement
Non-contact roll diameter measurement

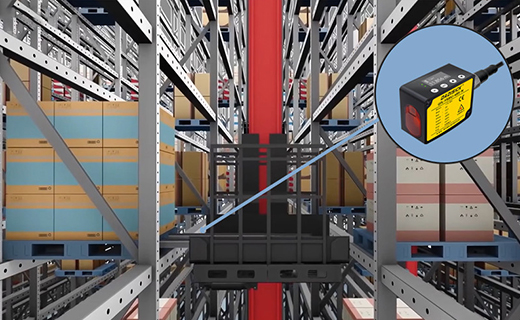

Application in warehouse stacker system
Application in warehouse stacker system

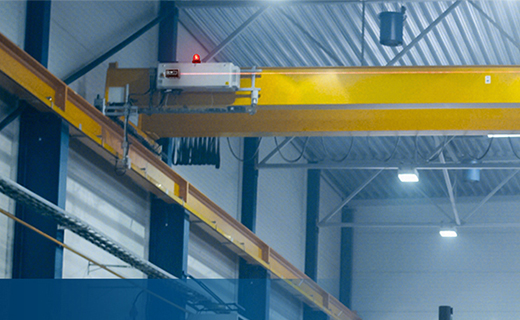

Long-distance measurement and positioning
Long-distance measurement and positioning
Laser distance sensors are widely used in the positioning systems of automated equipment such as automatic guided vehicles (AGV) and stackers. By measuring the distance and position relationship between equipment and goods in real time, laser distance sensors can ensure the precise navigation and operation of automated equipment and improve the efficiency and accuracy of warehouse management. At the same time, it can also effectively avoid collisions between equipment and the occurrence of safety accidents.

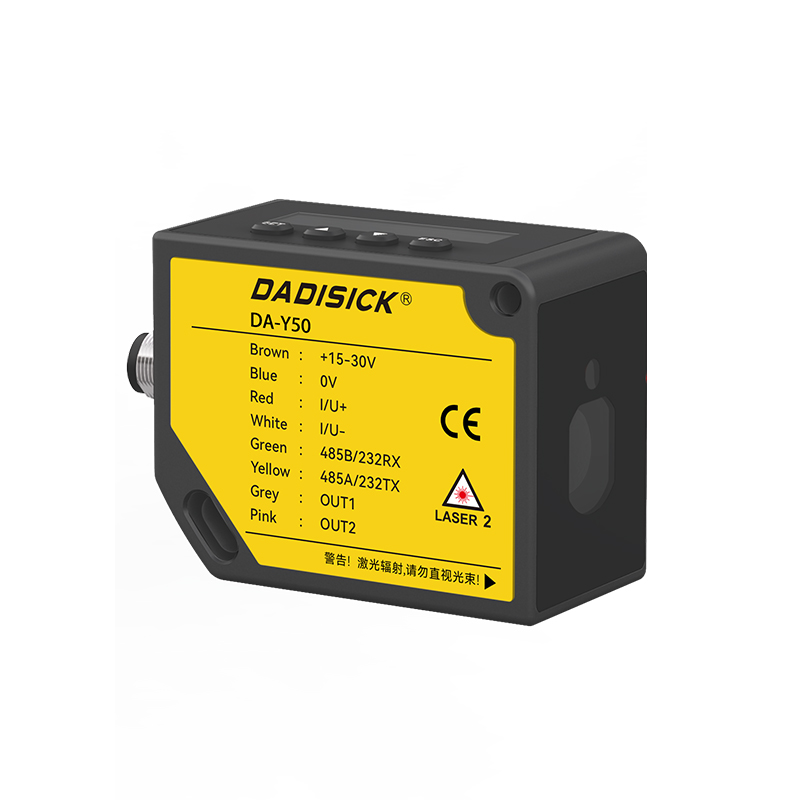

Laser Distance Sensor DA-Y Series

DA-Y & DB-Y series industrial-grade laser sensors provide accurate and stable distance measurement and can be integrated into various industrial applications. The red laser beam hits the reflective surface and non-contact measurement is performed based on the return signal.
DADISICK Laser Distance Sensor

Laser Distance Sensor DA-Y & DB-Y series Technical Documents file download

  • DA-Y & DB-Y series Laser Distance Sensor data sheet
  • DA-Y & DB-Y series Laser Distance Sensor User Manual

Laser Ranging Sensor GFL-Y series

The laser ranging sensors support multiple output modes, including NPN/PNP, analog, and RS485, allowing seamless integration with various control systems. This flexibility makes them adaptable to different application scenarios, from simple distance measurements to complex automated systems. The multifunctional design ensures that these sensors can meet diverse industrial needs efficiently.
DADISICK Laser Distance Sensor GFL-Y

Laser Ranging Sensor GFL-Y series Technical Documents file download

  • Laser Ranging Sensor GFL-Y series technical data sheet
  • Laser Ranging Sensor GFL-Y series User Manual

Long distance laser rangefinder

DADISICK's new long-distance laser rangefinder DS series can achieve high-precision fixed-point measurement within 200 meters, with a ranging accuracy of up to ±2mm; the DS series is equipped with an intuitive operation panel and status prompts, which can be easily and quickly installed: Unlike conventional phase rangefinders, this product can support a measurement frequency of up to 1000Hz, so it is particularly suitable for precise positioning and measurement of high-speed moving objects, and is an essential sensor for automated warehousing, logistics or driving systems.
DADISICK Laser Distance Sensor DS-120

Long distance laser rangefinder Technical Documents file download

  • Long distance laser rangefinder DS series technical data sheet
  • Long distance laser rangefinder DS series User Manual
  • DS Series Communication Protocol_V1.0.1
  • Long distance laser rangefinder DS Series Software User Manual
